Paper Cups With Lids: Which Lid Fits Which Cup

A lid is chosen by the rim, not by the name on the box

Tell us the product, the quantity and the delivery country, and a quotation comes back with the full specification attached. Optima Cup is the export brand of Elit Cup: cups and lids are formed, checked, packed and shipped from one plant in Istanbul, plain or custom printed.

Most buyers write their first order for paper cups with lids in ounces. Eight ounce, twelve ounce, sixteen ounce, and one lid for each of them. It reads like a tidy list, and it is the reason a pallet of lids sometimes sits in a stockroom long after the cups it was bought for have run out. A lid cannot read the label on the case. It only reacts to one thing: the diameter of the rim it has to grip.

This guide takes the range apart from the rim outwards. Which diameters actually run through the carton line, which lid closes which cup, where a size name stops being a specification, and how many separate items you are committing to when you sign off an order. The figures below come from our own product records rather than from a catalogue of somebody else's cups.

What paper cups with lids really have to match

Three things decide whether a lid stays on: the rim diameter of the cup, the rolled edge the lid clips over, and the depth of the skirt on the lid. Only the first appears on a specification sheet as a single number, and it does most of the work. Two cups with the same rim take the same lid even when their volumes are far apart. Two cups with the same volume and different rims do not, and no amount of pressing will change that.

The rolled edge matters more than it looks. A paper cup is closed by curling the top of the board outwards into a bead, and the lid grips under that bead rather than against the flat wall. This is why a cup and a lid from two different suppliers can share a rim figure on paper and still pop open in a delivery bag. Our dimensions are reference values, common to the size rather than measured from one production run, so the working rule stays the same in every enquiry: compare millimetres first, then have the pairing confirmed in writing before the order is fixed.

Five rim diameters run through the carton line

The hot and cold carton cups we make sit on five rim diameters. Written out in one place, the order list starts to shrink on its own.

• 62 mm — 100 ml, sold as 4 oz. The espresso end of the range.
• 70 mm — 150 ml (6 oz), 180 ml (7 oz) and 190 ml (7.5 oz). Three volumes on one rim; the 7.5 oz cup is simply taller at 92 mm.
• 76 mm — 250 ml, sold as 9 oz, at 97 mm tall.
• 80 mm — 240 ml (8 oz) and 350 ml (12 oz).

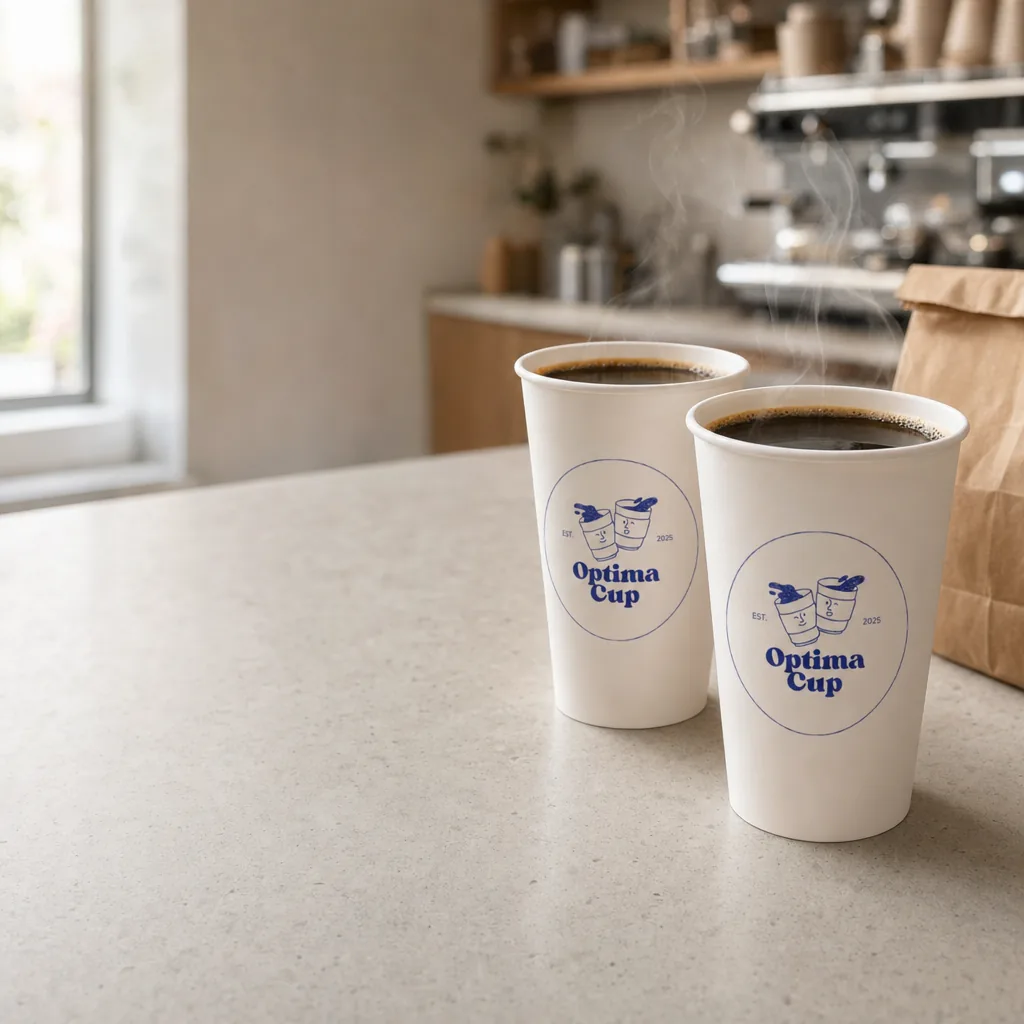

• 90 mm — 400 ml (14 oz) and 480 ml (16 oz). The 200 ml ice cream cup shares the same rim.

The pair worth staring at is 8 oz and 12 oz. One holds 240 ml, the other 350 ml, and they sit on the same 80 mm rim. A 12 oz cup is not a wider 8 oz cup, it is a taller one: 87.5 mm against 118 mm. Height moves with volume, the rim mostly does not, and that is the whole reason a short lid list is possible at all. Anyone ordering paper cups with lids for the first time should read this column before choosing the sizes, not after.

Which lid closes which cup

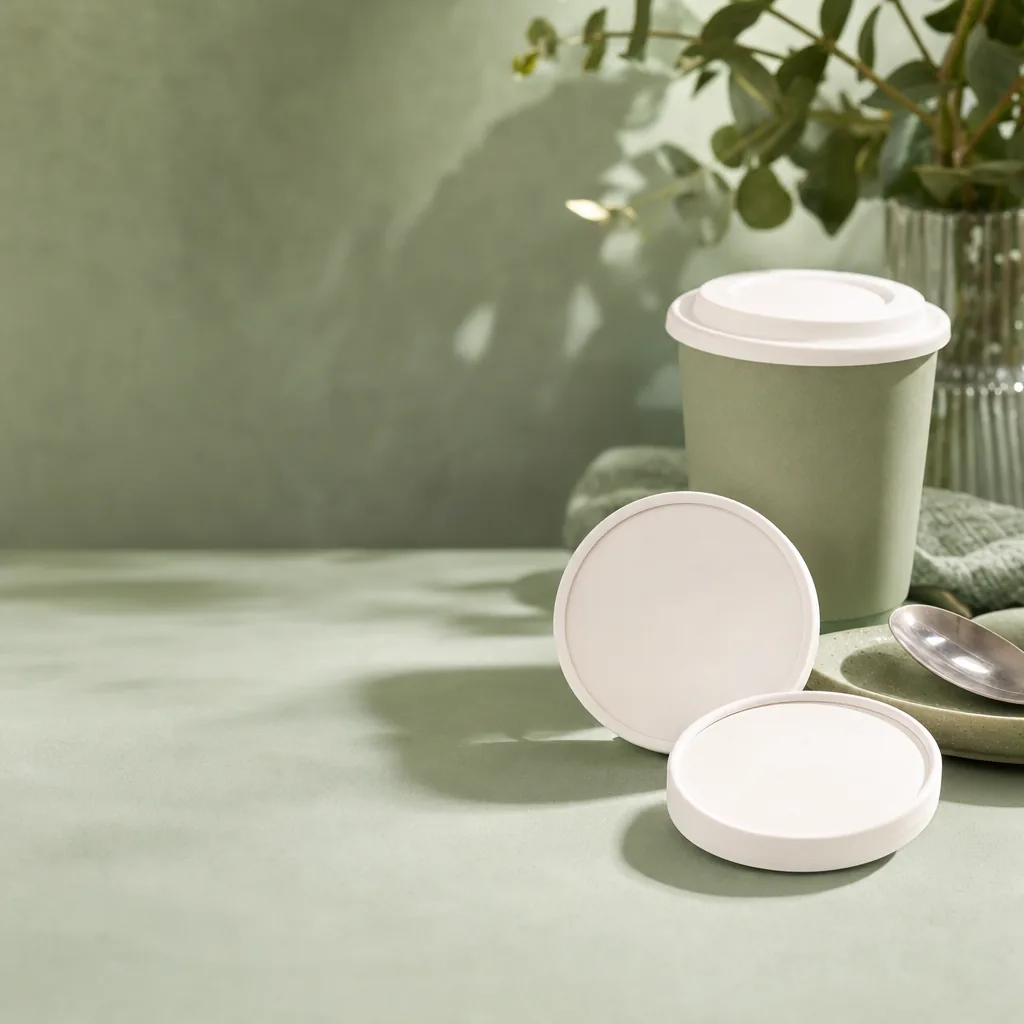

Our paper lids are named after the cup they were drawn for, but their diameters tell a shorter story. The 12 oz paper lid is 80 mm. The 14 oz and the 16 oz paper lids are both 90 mm. Read against the rim list, that leaves two working families on the carton side, not three. A buyer planning paper cups with lids across a whole menu only has to hold two diameters in mind here.

• 80 mm paper lid — closes the 240 ml (8 oz) cup and the 350 ml (12 oz) cup.
• 90 mm paper lid — closes the 400 ml (14 oz) cup, the 480 ml (16 oz) cup and the 200 ml ice cream cup.

A lid is available below 80 mm as well: the 62 mm 4 oz cup, the whole 70 mm family and the 76 mm 9 oz cup can be ordered closed, although those diameters do not have their own catalogue entry yet. That is not something to discover after a container has been loaded. If a lidded line matters to you at those volumes, say so in the first message and it can be answered before anything is priced.

Paper cups with lids and the shortest order list you can live with

A cafe serving a small, a medium and a large tends to buy three cups and, if the sizes were picked by volume alone, three lids. Pick 8 oz, 12 oz and 16 oz instead and the list becomes three cups and two lids, because the first two share the 80 mm lid. Pick 12 oz and 16 oz only and it is two cups and two lids, with headroom to add the 14 oz later without touching the lid list at all. The saving is not the unit price of a lid. It is one fewer item to forecast, store, count, re-order and get wrong.

Double wall does not change the lid

This is the question that comes back most often from buyers upgrading a hot line, and the answer is comfortable. The double wall versions of the 4, 7, 8, 14 and 16 oz cups carry the same rim diameters as their single wall counterparts: 62, 70, 80, 90 and 90 mm. The insulation is built into an outer sleeve that stops below the bead, so the lid sees exactly the cup it saw before. Hot cups with lids can move from single to double wall without a single new lid code.

What does change is the case. A single wall 480 ml cup is packed 1000 to a case; the double wall version of the same cup is packed 500, because the sleeve takes up nesting depth. The 180 ml double wall cup goes 750 to a case against 3000 for the single wall. Your lid list stays still while your case count moves, which is worth knowing before you convert a forecast built in cases rather than pieces.

On the cold side one diameter covers twelve cups

The clear PET range is the cleanest example of the principle in the whole catalogue. Every PET cup we list — 250, 300, 350, 400, 500, 600 and 650 ml — and every PET cold cup — 350, 400, 470, 500 and 700 ml — sits on a 95 mm rim. Twelve cup sizes, one diameter. Facing them are flat PET lids, a domed 95 mm lid with a straw hole, the same dome without a hole for pre-sealed drinks, and a strawless sip lid at 95 mm.

Once the rim is settled, choosing between those four stops being a fit question and becomes a menu question: a dome for whipped toppings and layered iced drinks, a flat lid for anything that travels stacked, a sip lid where a straw is being designed out. Worth flagging early: the minimum on PET cups is a full truck, a different planning problem from the carton line, and better raised in the first message than in the third.

Where the ounce name stops being a specification

The 7 oz cup is the plainest warning we can give. Its rim is recorded as 70 to 72.2 mm, a range rather than a figure, because the same nominal size is built to slightly different mouths across the industry. A lid drawn for 70 mm can sit loose on 72.2 mm, and a buyer comparing two offers on the word "7 oz" alone is comparing nothing at all. The same trap sits under 9 oz, which is 76 mm here and 80 mm in plenty of other ranges.

So the useful question in an enquiry is never "do you have 9 oz lids". It is "what is the rim diameter in millimetres, and which lid is confirmed against it". If you already run stock from another source, send the rim measurement of the cup you hold, not the size printed on the sleeve. Paper cups and lids matched that way arrive as one system instead of two shipments that almost fit.

What every extra lid costs you in commitment

Minimum order runs per item and not per order. Three pallets is the floor, a pallet is twenty cases, so any item you add to the list carries sixty cases with it. That arithmetic is the real argument for building a range around two rim diameters: every lid code you delete is sixty cases you do not have to store, finance or forecast.

Case counts are not uniform either, so sixty cases of one item is not sixty cases of the next. The 480 ml cup packs 1000 to a case, the 350 ml cup 2000, the 240 ml cup between 1000 and 2000, the 150 ml cup 3000, the 100 ml cup between 2000 and 3000, and the 95 mm dome lids 1000. Converting a piece forecast into cases before you write the enquiry saves a round of correspondence, and it is the first thing we do at our end anyway. For paper cups with lids the two counts rarely line up, since a case of lids and a case of cups hold different numbers of pieces.

Loading follows the same logic. A case of the 480 ml single wall cup measures 465 by 380 by 575 mm; 300 cases go into a 20 ft container, 690 into a 40 ft high cube and 950 onto a truck. The 350 ml cup is denser at 330, 800 and 1150 for the same three loads. Disposable coffee cups with lids ship well because the lids fill the volume the nested cups leave behind, which is another quiet argument for keeping the lid list short and the quantities deep.

Sending an enquiry that comes back usable

A first message that can be answered in one reply contains five things: the volumes you serve in ml or oz, the rim in millimetres if you already know it, whether each size needs a lid, the annual or per-shipment quantity, and the delivery country. If printing is involved, say how many colours and whether you have artwork ready.

From there the route is short. Look through the lid range to see which diameters exist, check the pairing against a cup such as the 90 mm 16 oz lid, then send the list through the quotation form. FCA is the usual arrangement, EXW for partial loads, DAP for a full truck, FOB or CIF where the route runs by sea. Tell us the product, the quantity and the delivery country, and the offer that comes back will name the rim in millimetres next to every cup on it, so that paper cups with lids arrive as pairs rather than as two hopeful line items.
